Available
Private Treaty

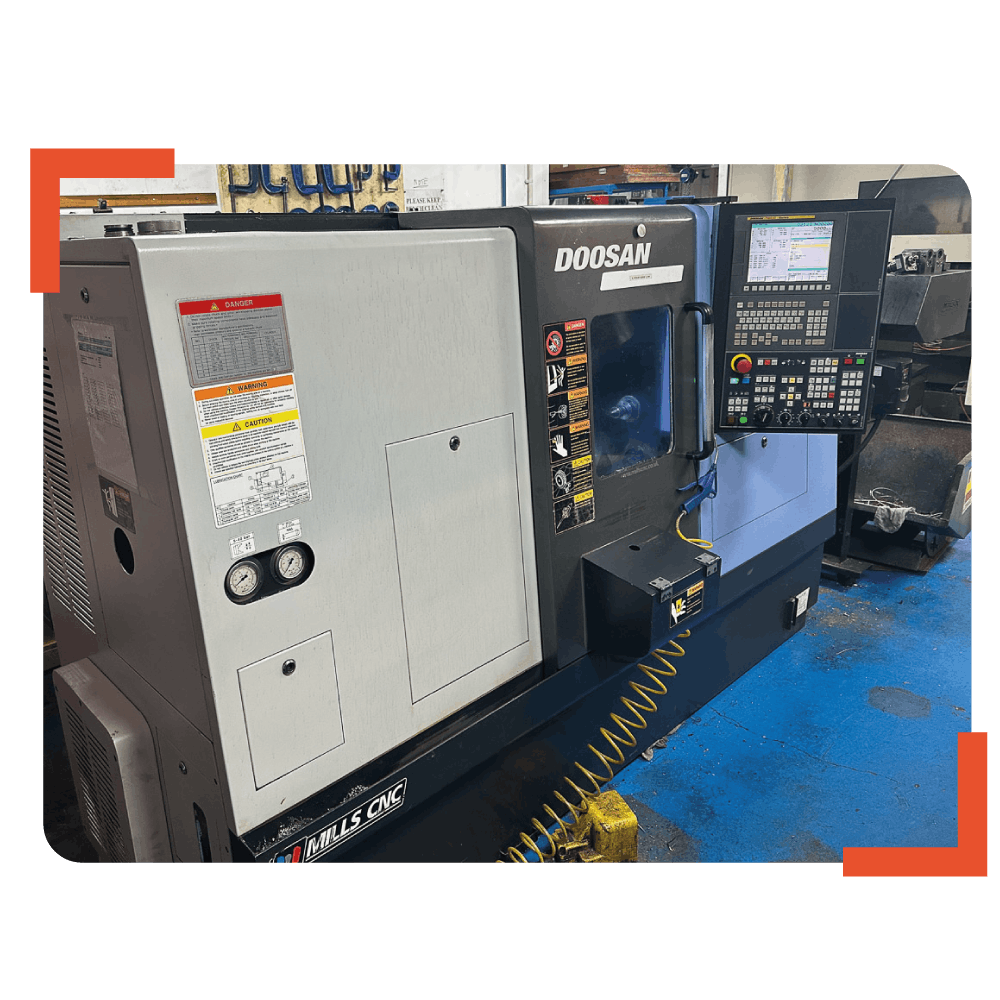

(2014) Doosan Lynx 220LM
Opportunity to purchase a Doosan Lynx 220LM CNC Lathe. This machine is available to purchase immediately and can be viewed under power by appointment only.
Send Inquiry
1 / 0
Summary
This machine is in GREAT condition and is available to purchase immediately. All viewings are by appointment only. Can be loaded for free to suitable transport
Location: Rugby, UK
Specifications
- Manufacturer:
Doosan
- Model:
Lynx 220LM
- X Axis Travel:
175 mm
- Z Axis Travel:
550mm
- Rapid Feed rates:
XZ: 30 x 36m/min
- C Axis:
0.001 Degrees
- Spindle Speed:
6,000 RPM
- Bar Capacity:
51mm
- Maximum Cutting Length:
510mm
- Maximum Cutting Diameter:
250mm
- Swing:
510mm
- Swing Over Cross-slide:
290mm
- Tailstock quill Diameter:
65mm
- Tailstock quill stroke:
80mm
- Tailstock taper:
MT 4
- Turret Positions:
24 (1-12 Driven)
- Machine Dimensions:
2630 x 1600 x 1655mm (L x W x H)
- Machine Weight:
3100Kg
- Year:
2014
Finance Options
Finance is available - please contact us for further details in regards to how you can acquire finance for this machine.
