Available
Private Treaty

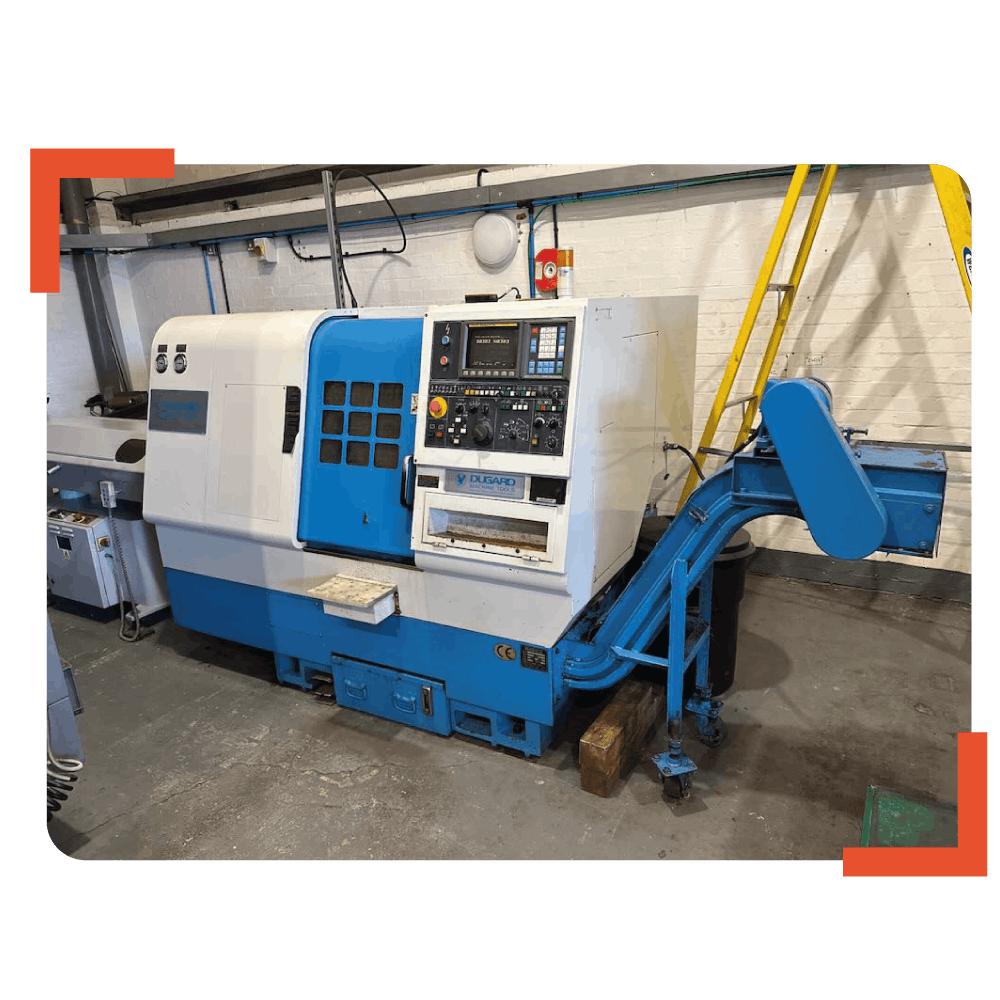

Dugard Eagle 100 Turning Centre with Barfeed
Opportunity to purchase a Dugard Eagle 100 Turning Centre. This machine is in good condition and is available to purchase immediately. View under power by appointment only
Send Inquiry
1 / 0
Summary
This Dugard Eagle 100 Turning Centre with Barfeed is available to purchase immediately. All viewings are by appointment only.
LOCATION: Nuneaton, UK
Specifications
- Control
Fanuc O-TD
- Swing Over "Z" Cover:
470mm
- Swing Over "X" Cover:
284mm
- Max Cutting Diameter:
250mm
- Cutting Diameter:
210mm
- Max Cutting Length:
290mm
- Spindle Nose:
A2-5
- Power Chuck:
169mm
- Through Hole:
57mm
- Max Rpm:
6000
- Spindle Motor:
7.5 kW
- Circular run-out:
0.003mm
- Bar Capacity:
45mm
- Z Axis Travel:
320mm
- X Axis Travel:
150mm
- Z Axis Rapid Traverse:
24 m/min
- Number of tools:
10
- Tool Size Square:
20x20mm
- Tool Size Bar:
32mm
- Tailstock Body Travel:
250mm
- Quill Travel:
80mm
- Quill Diameter:
70mm
- Quill Taper Hole:
MT 4
- Quill Activation:
Hydraulic
- Tailstock Body Positioning:
Manual
- Floor Space Required:
2.1 x 1.6 x 1.6m (L x W x H)
- Weight (Approx):
2800kg
Finance Options
Finance is available - please contact us for further details in regards to how you can acquire finance for this machine.
