Private Treaty

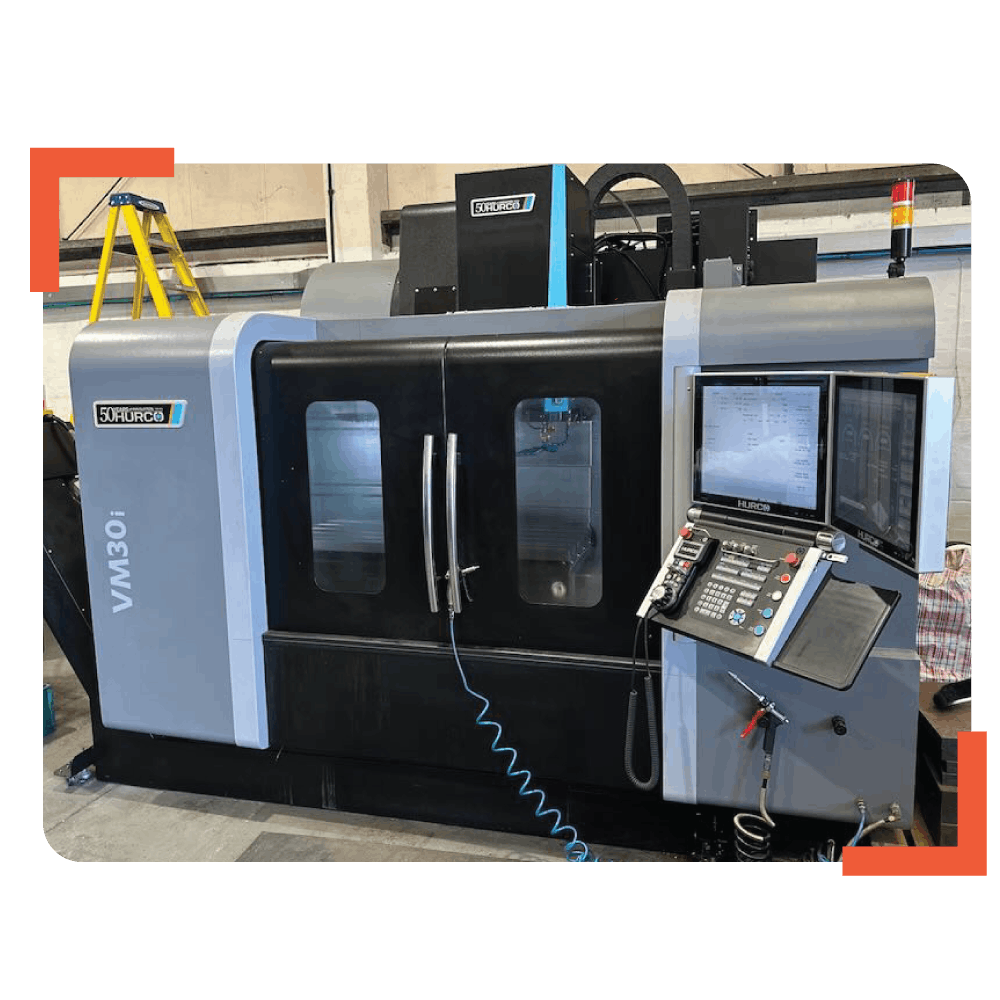

Hurco VM30i Vertical Machining Centre (2018)
Opportunity to purchase a Hurco VM30i Vertical Machining Centre (2018). This machine is in good condition and is available to purchase immediately. View under power by appointment only
Send Inquiry
Summary
This Hurco VM30i Vertical Machining Centre (2018) is available to purchase immediately. All viewings are by appointment only.
Swarf Conveyor
Swarf Skip
20x BT40 Tooling Package.
BT40 Swing Arm
Spindle Chiller
Coolant Washdown
Hurco Winmax 5 Twin Screen Control
Hurco Stackable Vice
Auxilliary Graphics Screen
Classic Package:
Air Hose and Pistol Assembly
Anti Fatigue Mat
120 GB Solid State Hard Drive
3.5GB Ram
True Type Engraving
High Resolution 3D Rendered Graphics
Real time tool simulation
USB Port
High Speed Profiling software with S curve acceleration with selectable surface finish quality
Software Options Include:
Advanced Verification Graphics
DXF software
NC Productivity package
Ultipockets
Insert Pockets
Rigid Tap
Helical Ramp
Airblast
Ethernet Networking and Remote Diagnostics
Hurco Height Setter
Gewefa 3D Part Setter
Adaptipath
NC Conversational Merge
Selectsurface Finish Quality
Tool and Material Library
UltiMotion
Tool Change Optimisation
LOCATION: Nuneaton, UK
Specifications
- Year:
2018
- S/N:
H-V3E0567
- Spindle Hours
3186
- X Axis Travel:
1270mm
- Y Axis Travel:
508mm
- Z Axis Travel:
508mm
- Table Size:
1,321mm x 508mm
- T Slot Size:
5 slots, 18mm wide
- Maximum Table Load:
1,800kg
- Spindle Nose to Table Distance:
102mm
- Maximum Spindle Speed:
12,000 RPM
- Spindle Power:
15kW
- Spindle Torque:
82.3 Nm @ 1,740 rpm
- Tool Type:
BT40
- Number of Tools:
24
- Maximum Tool Diameter:
80mm
- Maximum Tool Length:
250mm
- Maximum Tool Weight:
7 KG
- Rapid Traverse Rates: (X, Y, Z Axis):
28 m/min
- Maximum Programmable Feedrate:
28 m/min
- Dimensions:
4,086mm x 3,312mm x 2,543mm (L x W x H)
- Machine Weight:
4,320 kg
