Private Treaty

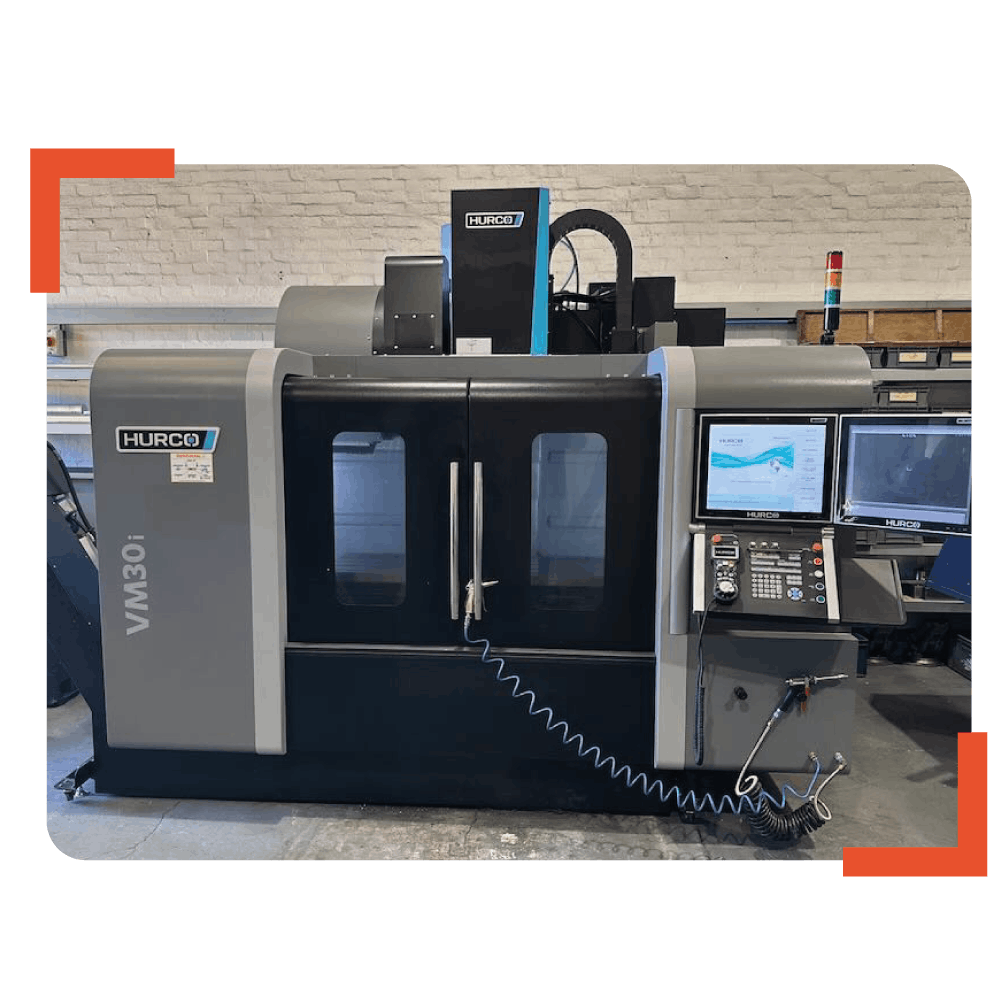

Hurco VM30i Vertical Machining Centre (2021)
Opportunity to purchase a Hurco VM30i Vertical Machining Centre. This machine is in good condition and is available to purchase immediately. View under power by appointment only
Send Inquiry
Summary
This Hurco VMX64i Vertical Machining Centre is available to purchase immediately. All viewings are by appointment only.
Software Options Include:
Renishaw Part Probing
Advanced Verification Graphics
2nd seat DXF with enhanced features
NC Productivity package
Industry Standard NC
Ultipockets
Rigid Tap
Helical Ramp
Adaptipath
NC Conversational Merge
Selectsurface Finish Quality
Tool and Material Library
UltiMotion
Tool Change Optimisation
Ultimonitor
Ultinet Ethernet with Remote Diagnostics
Swarf Augar Conveyor
Hurco Height Setter
Hurco Stackable Vice
Programmable Air Blas
20x retention studs
Rigid Tapping
Classic Package:
Air Hose and Pistol Assembly
Anti Fatigue Mat
74 GB Solid State Hard Drive
2GB Ram
True Type Engraving
High Resolution 3D Rendered Graphics
Real time tool simulation
USB Port
High Speed Profiling software with S curve acceleration with selectable surface finish quality
Hurco Winmax 5 Twin Screen Control
• Display: Dual 19-inch color LCD touchscreens with adjustable tilt and brightness
• Processor: 2.7 GHz Dual Core
• RAM Memory: 4 GB
• Hard Drive: 128 GB Solid State
• Input/Output Ports:
Networking & Connectivity
• Ethernet and USB Ports:
• Easy transfer of programs and files
LOCATION: Nuneaton, UK
Specifications
- Year:
2021
- S/N:
H-HV3E0812
- Spindle Hours:
725 hours
- X Axis Travel:
1270mm
- Y Axis Travel:
508mm
- Z Axis Travel:
508mm
- Table Size:
1,321mm x 508mm
- T Slot Size:
5 slots, 18mm wide
- Maximum Table Load:
1,800kg
- Spindle Nose to Table Distance:
102mm
- Maximum Spindle Speed:
12,000 RPM
- Spindle Power:
15kW
- Spindle Torque:
82.3 Nm @ 1740rpm
- Tool Type:
CAT / BT40
- Number of Tools:
24
- Maximum Tool Diameter:
80mm
- Maximum Tool Length:
250mm
- Maximum Tool Weight:
7 KG
- Rapid Traverse Rates: (X, Y, Z Axis):
28 m/min
- Maximum Programmable Feedrate:
28m/min
- Dimensions:
4,086mm x 3,312mm x 2,543mm (L x W x H)
- Machine Weight:
4,320 kg
Finance Options
Finance is available - please contact us for further details in regards to how you can acquire finance for this machine.
