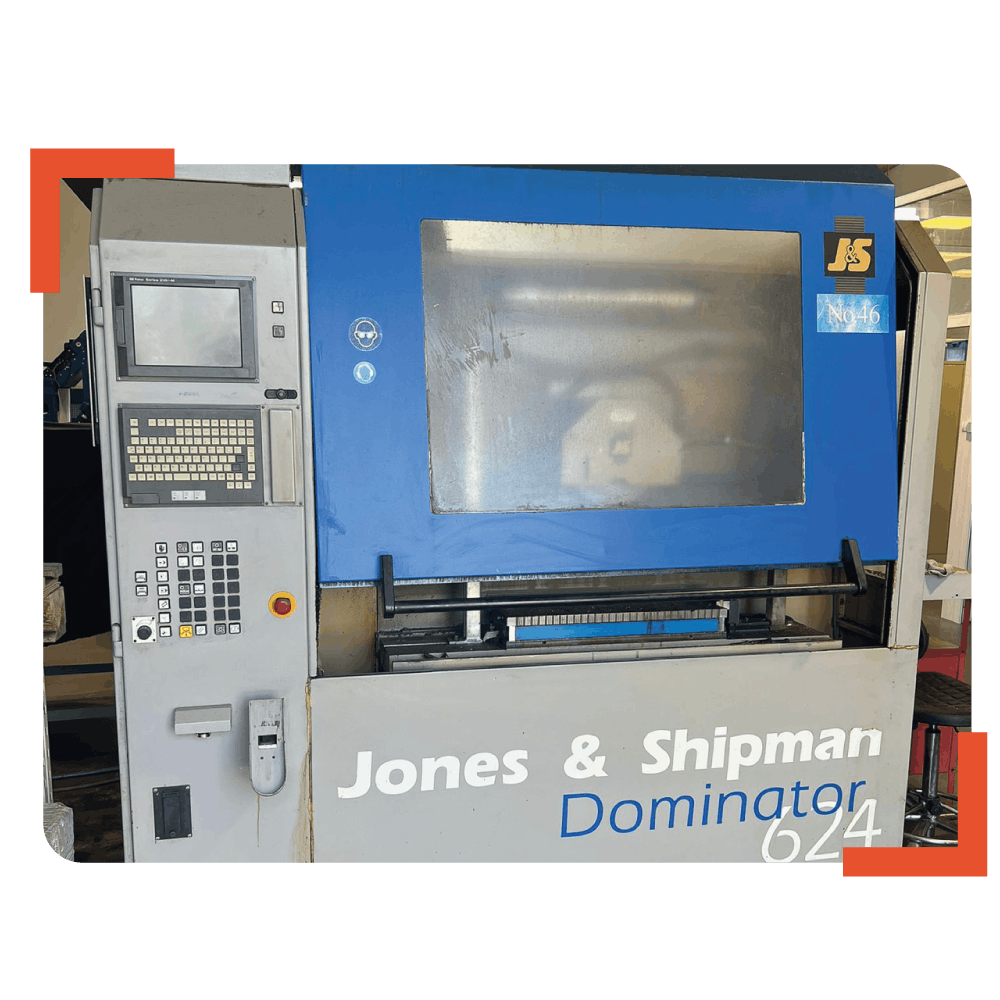

Jones and Shipman Dominator 624 Grinder
Opportunity to purchase a Jones and Shipman Dominator Grinder. This machine is in great condition and is available to purchase immediately. Viewing under power available by appointment only.
Send Inquiry
1 / 0
Summary
This grinder is available to purchase immediately. All viewings are by appointment only.
Model: Dominator 624
Location: Burscough, UK
Specifications
- Table Length:
600mm
- Table Width:
200mm
- Control:
Fanuc 210i-M
- Wheel Diameter:
250mm
- Wheel Width:
25mm
- Max Wheel Speed:
3200 RPM
- Spindle Power:
7.5kW
- X Axis Travel:
650mm
- Y Axis Travel:
440mm
- Z Axis Travel:
650mm
- X Axis Velocity:
0-40 m/min programmable increment
- Y Axis Velocity:
0-6 m/min programmable increment
- Z Axis Velocity:
0-40 m/min programmable increment
- C Axis Max Rotation Speed:
180° per second
- C Axis Min. Programmable Increment:
0.0001 Degrees
- Footprint:
2100 x 1500 x 2100mm (L x W x H)
- Weight:
2650kg
