Private Treaty

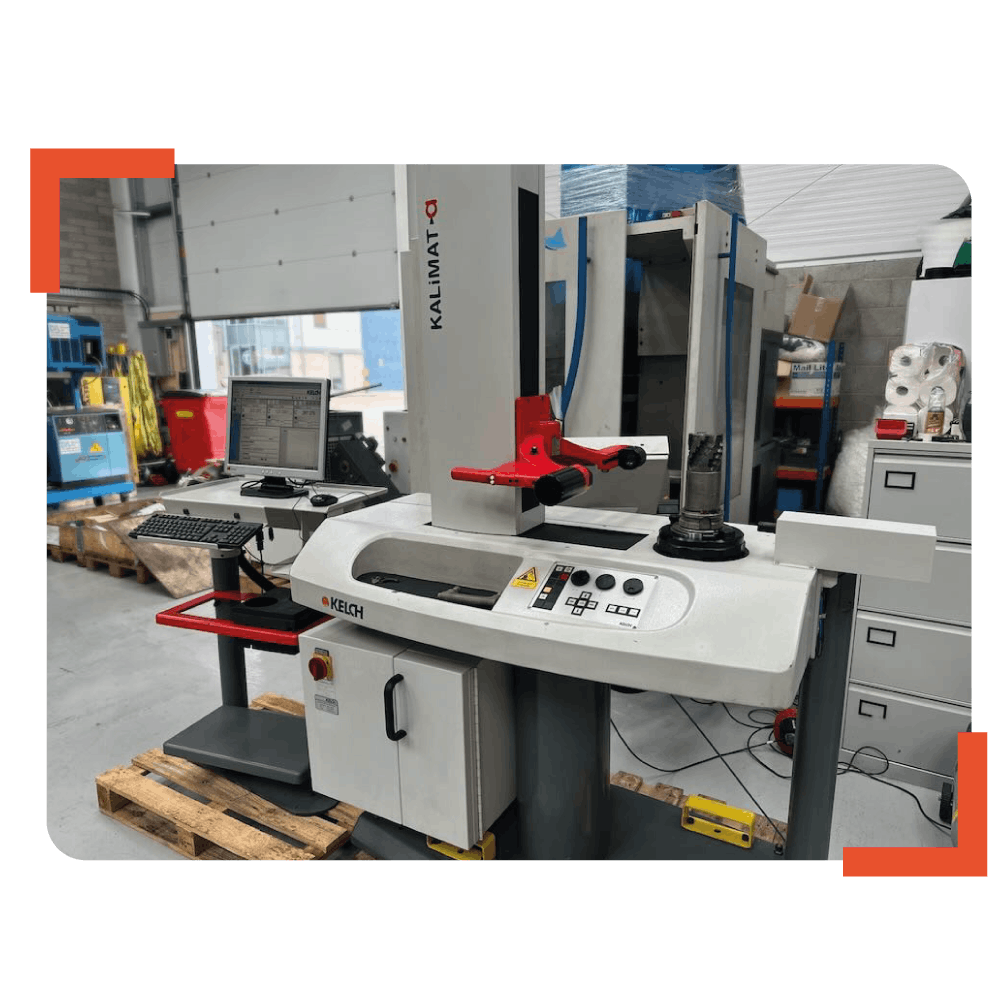

Kelch Kalimat A CNC Presetter
Opportunity to purchase a Kelch Kalmat A CNC Presetter. This machine is in great condition and is available to purchase immediately. View under power by appointment only
Send Inquiry
Summary
This Kelch Kalmat A CNC Presetter is available to purchase immediately. All viewings are by appointment only.
Comes with:
"MPS" Insert modules available for SK/BT40 / SK/BT50 / HSK-63 / HSK-100.
Industrial IPC -610 Advantech (Recent new Power supply and hard drive fitted)
Implant Chip Coding System
BALLUFF RFID Data chip Read/Write Hardware / Software.
Automatic Balluff Reader / Writer Head - Horizontal (RFID data Chips fitted in back end tool body)
Additional Vertical Balluff Automatic read/write head for Vertical reading of RFID Chips built into the base of Bull Studs.
Balluff functions controlled via Keyboard / Screen via Balluff software.
DNC Interface via post processor software package for output of measured tool data via network to cell controller or direct to machine tool control.
Top of the range Kelch tool presetter 40k when new with MICRON accurate tool measuring with 100% repeatability.
MPS modular power clamping spindle still accurate to 0.005 micron over 300mm on test bar.
LOCATION: Bromsgrove UK
Specifications
- Model:
Kelch Kalimat "A" 56-3/C
- Serial Number:
5565
- Operating System:
Windows XP Professional
- Measuring Software:
Kelch Easy Webset Version 5.2.0
- X Axis Measuring Range:
500mm
- Z Axis Measuring Range:
600mm
- Tool Holding:
Power operated CNC Modular power base spindle "MPS" (modular power spindle)
- Measuring system:
MegaVision CCD Camera optical measuring system / 7x7mm 40 x tool magnification display
- Dimensions:
214cm x 66cm x 195cm (L x D x H)
