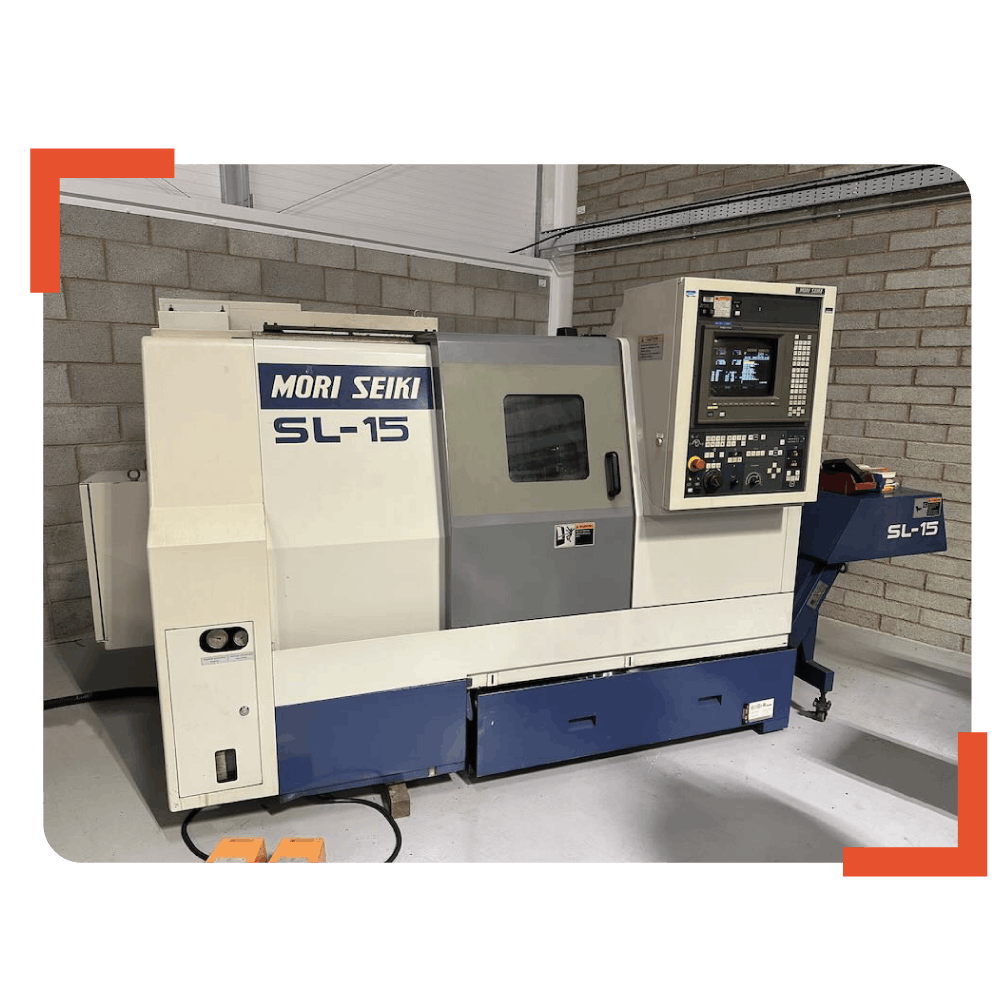

Mori Seiki SL-15 Turning Centre
Opportunity to purchase a Mori Seiki SL-15 CNC lathe. This machine is available to purchase immediately and can be viewed under power by appointment only.
Send Inquiry
1 / 0
Summary
This machine is in GREAT condition and is available to purchase immediately. All viewings are by appointment only. Can be loaded for free to suitable transport
Running with no faults
FANUC 16 T Controls
Swarf Conveyor
Tooling Package
Electrical and Parameter Manuals
Location: Bromsgrove
Specifications
- Cutting Hours:
538
- Operating Time:
761
- Power On Hours:
4275
- Year:
1995
- S/N:
1867
- Controls:
MSD-516 Fanuc 16 T
- Country of Origin:
Japan
- Number of Axis:
2
- Turning Diameter:
420mm
- Distance Between Centres:
645mm
- Turning Length:
560mm
- Swing Diameter:
455mm
- Spindle Bore:
50mm
- Rapid Traverse X:
18 m/min
- Rapid Traverse Z:
24 m/min
- X Axis Travel:
220mm
- Z Axis travel:
520mm
- Spindle drive:
10hp / 7.5 kW
- Spindle speed:
60-6000 RPM
- Spindle torque:
143 Nm
- Spindle nose:
JIS A2-5
- Turret Positions:
12
- Tailstock quill taper:
mt4 Coolant Tank
- Tailstock quill stroke:
80mm
- Tailstock quill diameter:
75mm
- Tailstock travel:
450mm
- Total power requirements:
25 kW
- Tool Pre-setter:
Yes
- Chuck:
6 Inch, 150mm 3 Jaw Chuck
- Swarf Conveyor:
Yes
