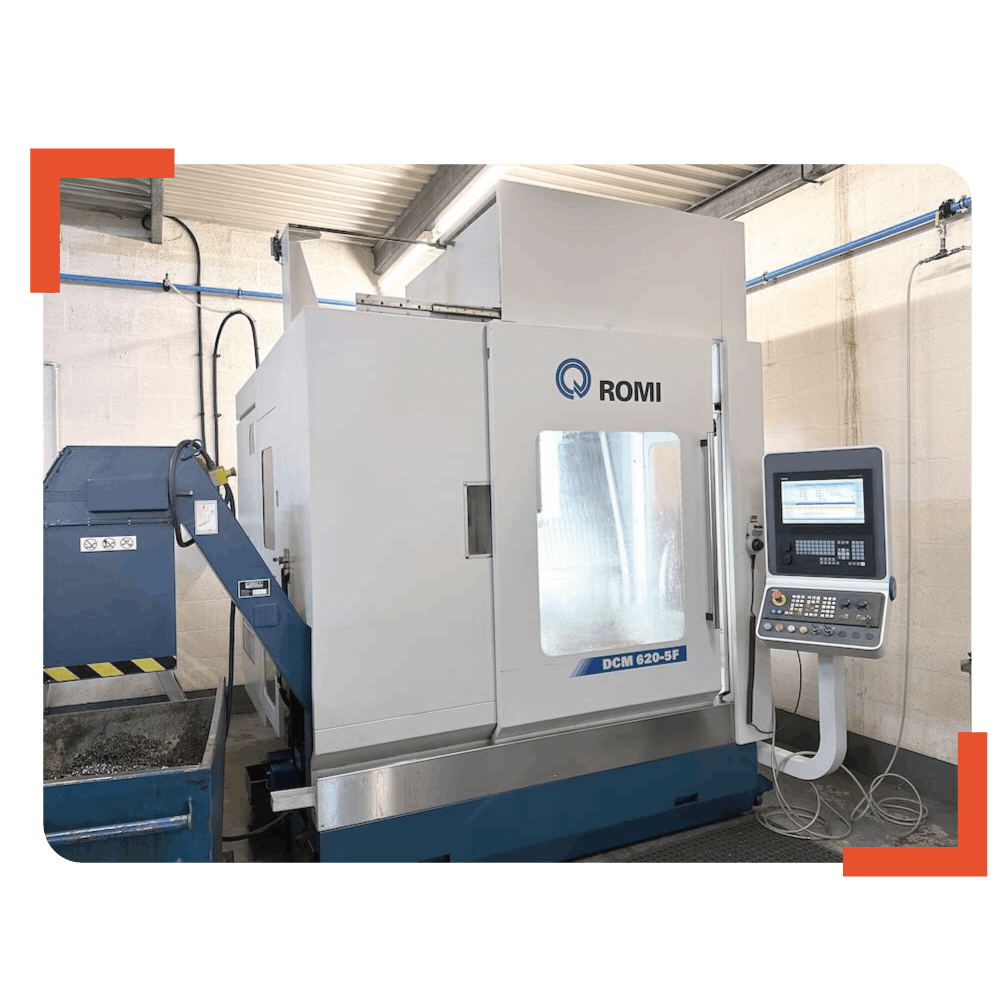

Romi DCM 620-5F 5-axis Vertical Machining Center
Opportunity to purchase a 2016 Romi DCM 620-5F 5-axis Vertical Machining Center with Siemens Sinumerik 828D CNC Control System. This machine is in excellent condition and is available to purchase immediately. viewing under power available by appointment only.
Send Inquiry
Summary
This vertical machining center is available to purchase immediately. All viewings are by appointment only.
Complete with Renishaw RMP60 3D probe. Probe measuring cycles. Remote 5-axis handwheel. Part 3D simulation. Coolant equipment, high pressure coolant through the spindle, flood coolant, oil skimmer and swarf conveyor.
fitted with Siemens Sinumerik 828D CNC Control System
Model: DCM 620-5F
Supply Volts: 380V
3 phase
Year: 2016
S/N: 016-019458-420
LOCATION: Redditch, West Midlands, UK
Specifications
- Control system:
Siemens Sinumerik 828D
- Spindle speeds:
10,000 rpm
- Spindle Hours:
3320
- Automatic tool changer:
30 tools
- Spindle taper:
BT-40
- Table surface area:
600 x 600 mm
- X-axis travel:
620 mm
- Y-axis travel:
520 mm
- Z-axis travel:
460 mm
- Max/min spindle nose to table:
150 – 610 mm
- Swivelling angle – B axis:
-110 - + 110 degrees
- Swivelling range – C axis:
360 Degrees
- Rapid feed rate: X, Y, & Z:
36 m/min
- Maximum weight on table:
300 kg
- Machine weight:
9,200 kg
- Footprint:
4,167 mm X 3,400 mm x 2,873 mm (L x W x H)
- Year:
2016
- S/N:
016-019458-420
