Available
Private Treaty

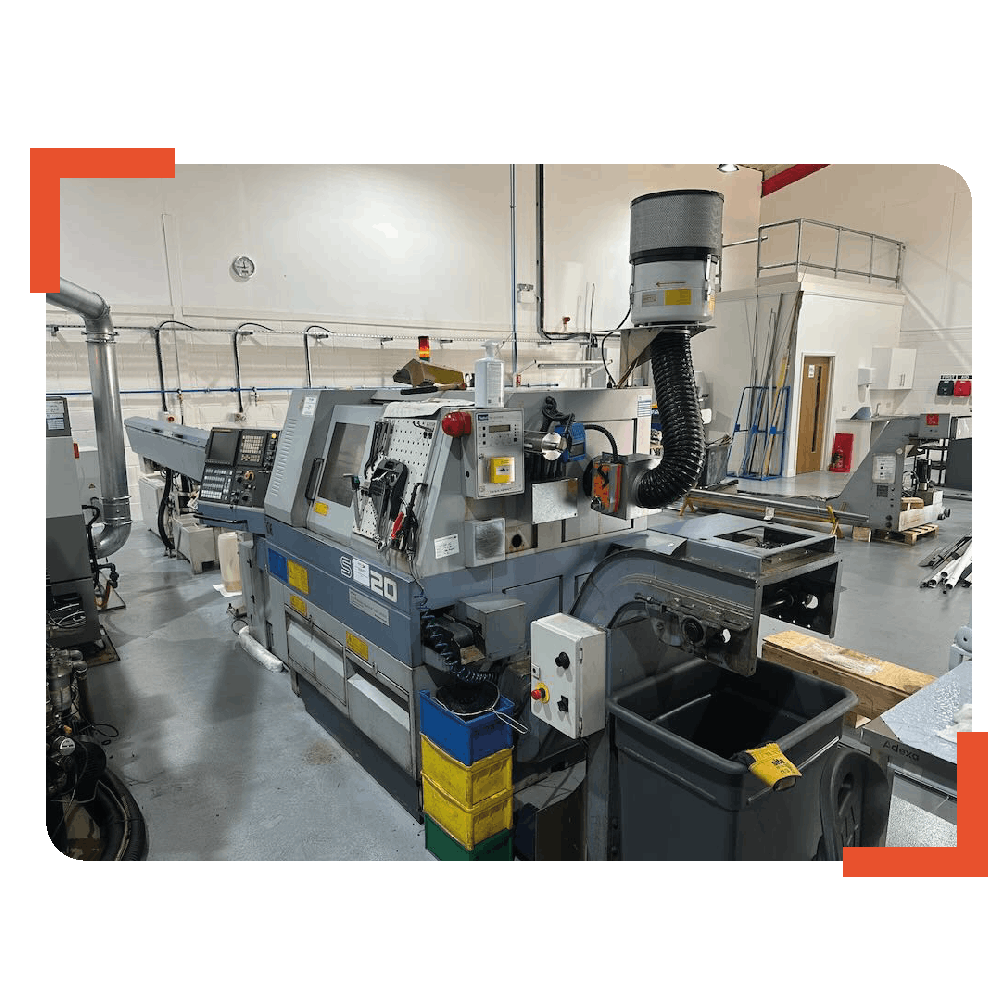

Star SV20 CNC Lathe
Opportunity to purchase a Star SV20 CNC Lathe. This machine is in good condition and is available to purchase immediately. View under power by appointment only
Send Inquiry
1 / 0
Summary
This Star SV20 CNC Lathe is available to purchase immediately. All viewings are by appointment only.
Specifications
- Max Diameter:
20mm
- Standard Stroke:
205mm
- Max Drilling Capacity:
14mm Diameter
- Max Tapping Capability:
m10 x p1.5
- Max Die Cutting Capability:
m10 x p1.5
- Max Driven Drilling Capability:
8mm Diameter
- Max Driven Tapping Capability:
m6 x p1.0
- Max Milling Capability:
10mm Diameter
- Max Slotting Capability:
2mm x 6mm (W x D) 50mm Cutter Diameter
- Main Spindle Min. Indexing Angle:
0.01 Degrees
- Main Spindle Rotation Speed:
10,000 RPM
- Main Spindle Motor:
3.7kW
- Power Driven Att. Spindle Speed:
6,000 RPM (GANG TYPE) 5,750RPM (TURRET TYPE)
- Power Driven ATT Drive Motor:
0.5kW (GANG TYPE) 2.8kW (TURRET TYPE)
- Coolant Tank Capacity:
170L
- Power Consumption:
9.0KVA
- Dimensions:
2670mm x 1375mm x 1660mm (L x W x H)
Finance Options
Finance is available - please contact us for further details in regards to how you can acquire finance for this machine.
