Private Treaty

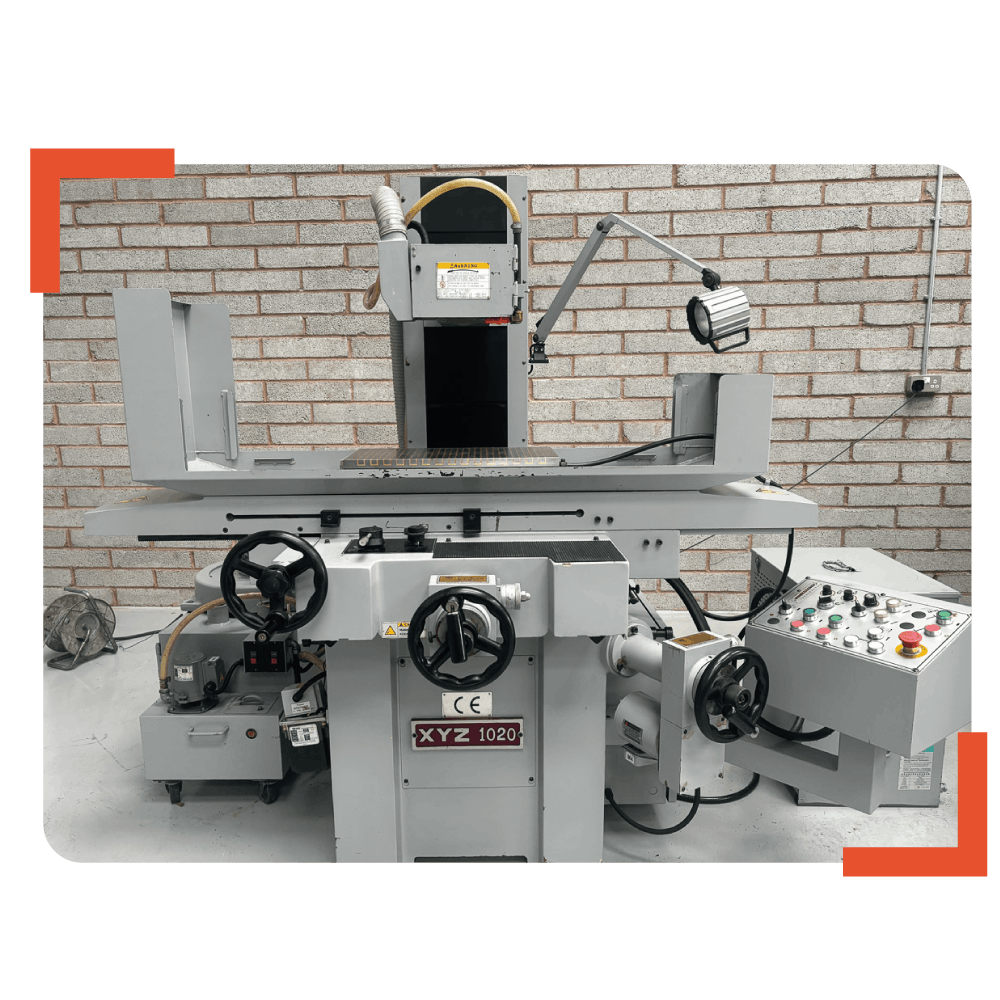

XYZ 1020 Surface Grinder (2012)
Opportunity to purchase an XYZ 1020 Surface Grinder (2012). This machine is available to purchase immediately and can be viewed under power by appointment only.
Send Inquiry
Summary
In great condition, this machine is available to purchase immediately. All viewings are by appointment only.
Machine can be inspected under Power.
Comes with:
Electro Magnetic Chuck with Demaginitiser
Separate Hydraulic Tank
Separate air and coolant tank
Incremental Cross Feed
Halogen Work Lamp
Lubrication System
Coolant.
Dust Extraction.
Worklight
Includes: 2x Wheel Arbors
MODEL: XYZ 1020
S/N: 1224055
Specifications
- Manufacturer:
XYZ Machine Tools Ltd
- Model:
XYZ 1020
- Weight:
1550KG
- Magnetic Chuck Size:
250 x 500mm
- Max Grinding Length:
500mm
- Max Grinding Width:
250mm
- Max Table Surface to Spindle Centre:
500mm
- Longitudinal Travel:
550mm
- Longitudinal Feeds:
5 - 25M/min
- Cross Travel:
270mm
- Cross Travel- Auto Increment:
0.15 - 15mm
- Cross Feed Travel per Revolution:
4mm
- Cross Feed Handle Graduation:
0.02mm
- Down Feed Travel per Revolution:
2mm
- Down Feed Handle Graduation:
0.01mm
- Spindle:
1.5 kW
- Max Spindle Speed:
2900 RPM
- Hydraulic motor power:
1hp
- Grinding Wheel Diameter:
180mm
- Grinding Wheel Width:
12cm (19cm Max)
- Grinding Wheel Bore:
31.75mm
- Voltage:
415V
- Power Requirements:
20Amp - 3 Phase Supply
- Floor Plan:
225cm x 145cm x 180cm
- Year:
2012
- Serial Number:
1224055
Finance Options
Finance is available - please contact us for further details in regards to how you can acquire finance for this machine.
